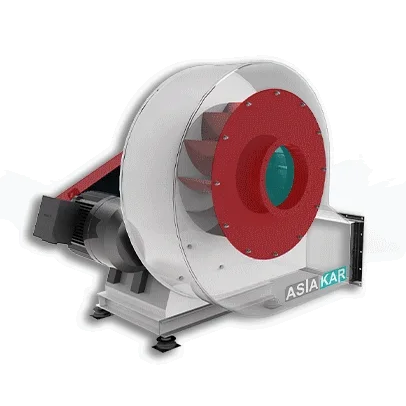

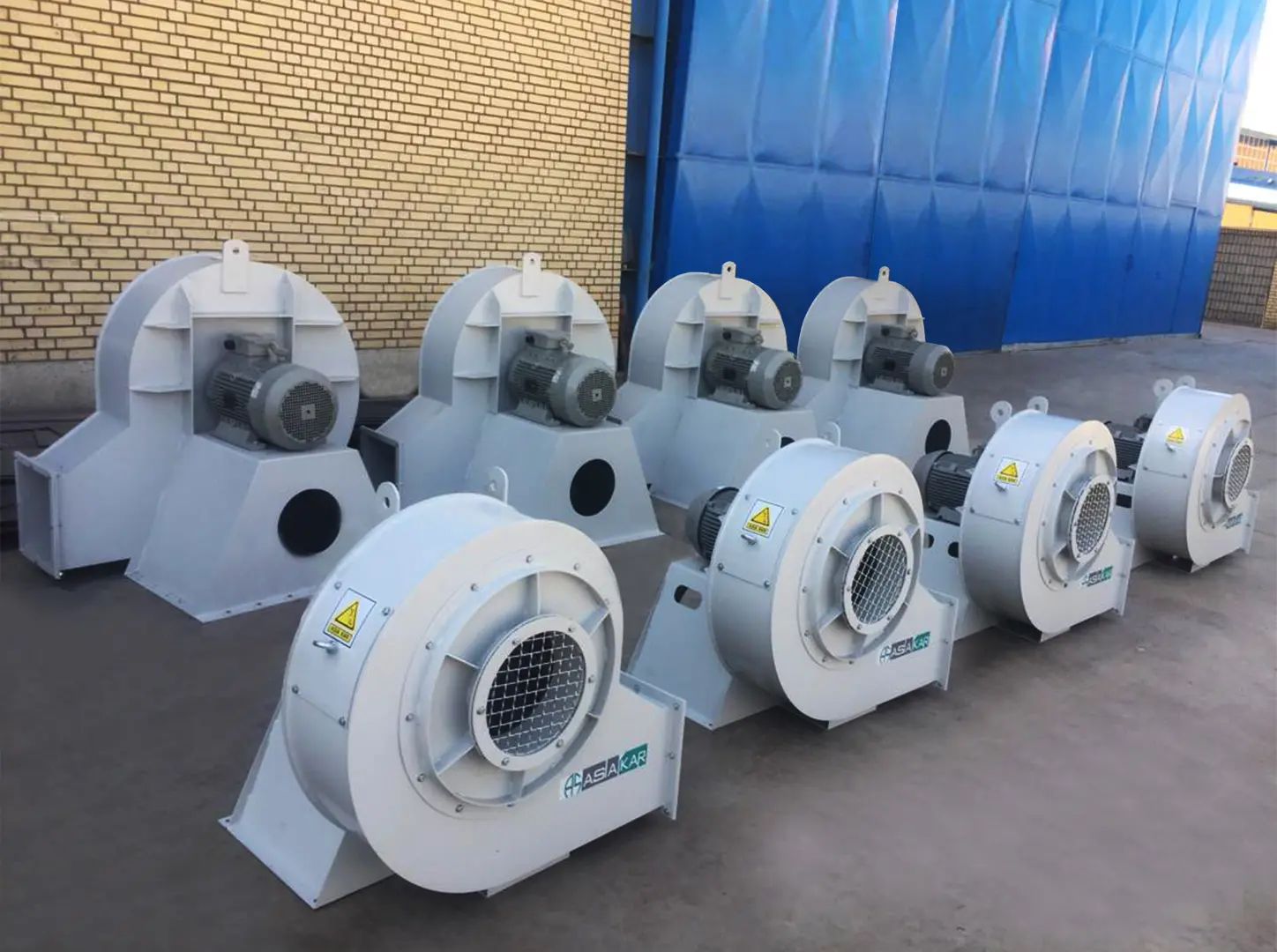

Centrifugal Fan

A Centrifugal Fan is a kind of Centrifugal blowers that use high-speed impellers or blades to impart velocity to air or other gases. They can be single or multi-stage units.
Centrifugal fans consist of an impeller in a casing having a spirally shaped contour. The air enters the impeller in an axial direction and is discharged at the impeller outer periphery.
The airflow moves along the centrifugal direction (or radial direction). Sometimes centrifugal fans are called radial flow type fans. Centrifugal fans are capable of generating relatively high pressures.
They are suitable for high-pressure applications as compared with axial flow fans. Generally, Centrifugal fans from Asiakar Co. have three types of blade: forward blade, backward blade, and radial blade.
Centrifugal fans are designed to withstand difficult operating conditions including high temperatures, abrasive materials, acidic fumes, corrosive gases, and so on, which are used to convey clean or lightly polluted air and non-aggressive gases.

Centrifugal Fan Industry Uses

Asiakar Co. designs and manufactures Centrifugal Fans to meet the needs of many industries, such as Steel Smelter Project / Cement industries / Nonferrous metal industries / Aluminum Smelter Project / Chemical Industries / Oil and Refining Industries / Minerals Processing / Food industries / Wheat, Cereal and other grain silo/ Warehouse and silo Aeration Cycle Systems/grain silo and Warehouse equipment / Animal Feed Plants.
The capability to generate low to medium flow rates at medium to high pressures makes centrifugal fans ideal for applications with higher system pressure losses such as cooling and heating systems, dust control, transporting materials, boiler and chemical production processes.
The operating principle is a combination of two effects, the centrifugal force and the deflection of the airflow by the blades which the deflection is from a rapidly outward direction into a spiral flow pattern.
We specialize in the design and manufacture of custom-built Centrifugal Fan that can immediately improve the safety, reliability, and efficiency of your order as your special material compared to other brands.
All the equipment components and assembly of them (except the standard components and parts) are manufactured in our factory shop, with advanced, updated and high technology machines, equipment and devices by highly skilled craftsmen and they are manufactured with rigid quality standards.

Advantages Provided by Asiakar Co.

The team of the Asiakar Co. engineers in cooperation with their counterparts of the host company, estimate the exact need of the site plant and determine the required capacity after a specialized visit from the relevant site plant.
The team gathered environmental dimensional information on the existing equipment and. By considering all the observations and measurements, the team will recommend a new design as a solution that would not only handle current requirements but also provide additional life.


Surface coating specifications
Epoxy paint contains Zinc Rich , Sa 2½
Ability to install PLC system
Power transmission method
Direct coupling
Gear motor chassis
Ability to carry materials
Powdery material
Landing conditions
